مكبس ثني NC

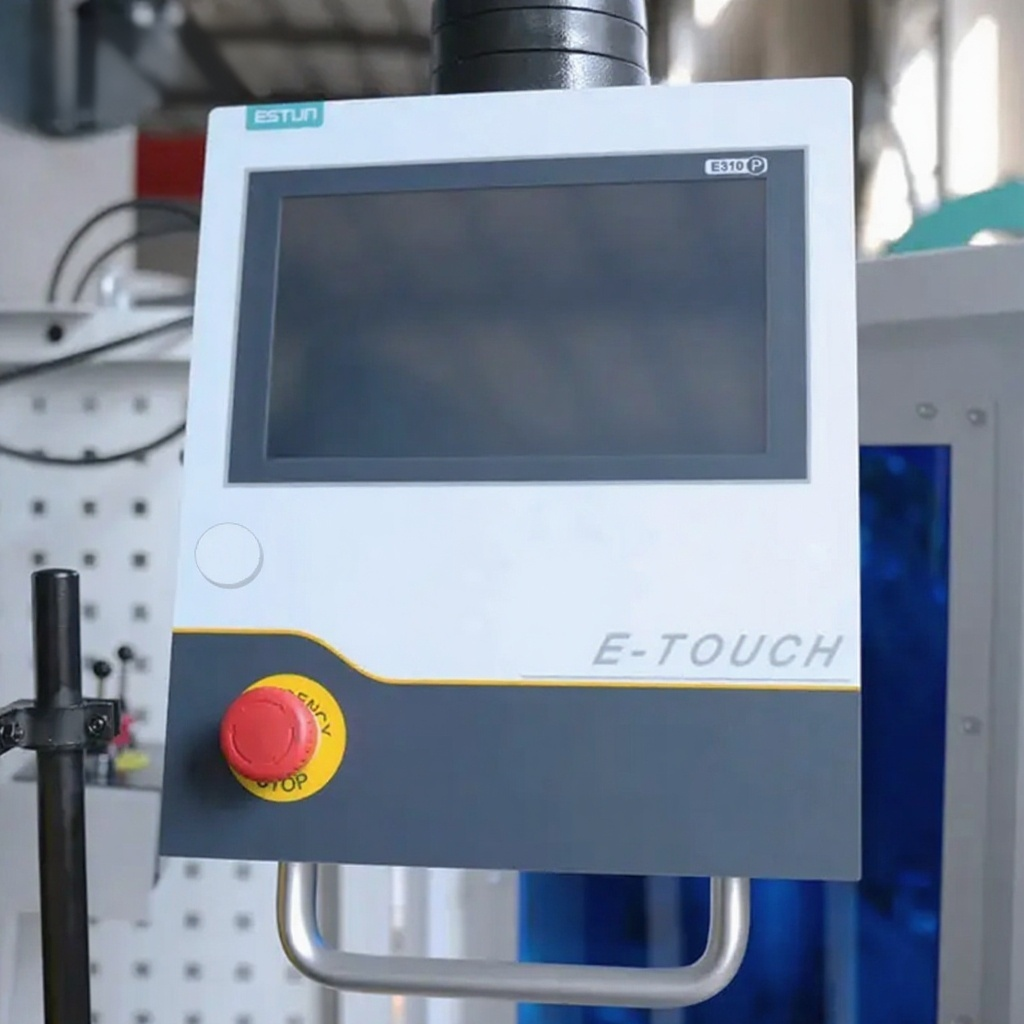

The Estun E300P series has the ability to control the X and Y axes and allows for editing of the bending steps directly through the controller.
Furthermore, the Estun E300P, Delem DA41T, and Cybelec CT8

controllers offer additional angle programming capabilities, touch screen displays, and R-axis control functions, all of which contribute to making the bending process more efficient and user-friendly.

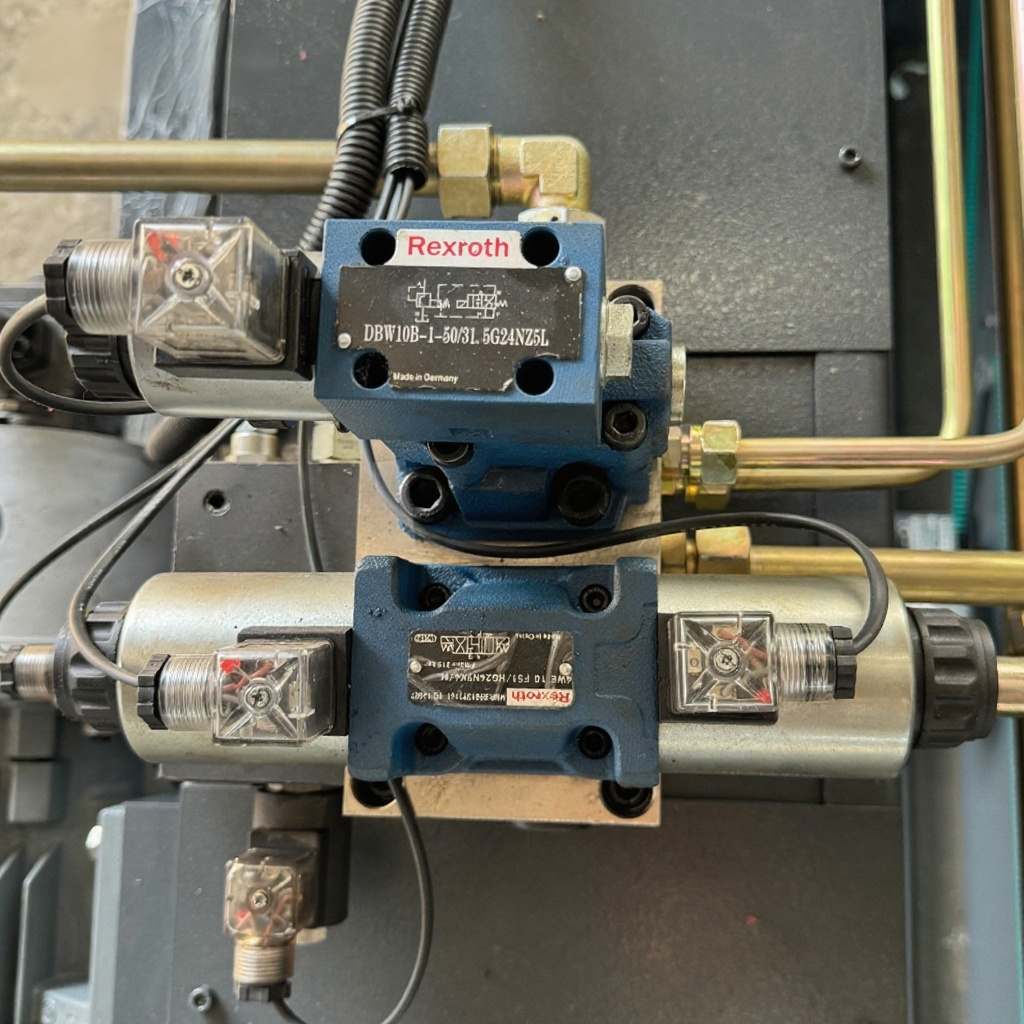

Feature high-quality hydraulic valves, specifically from the Rexroth brand. These valves are capable of with standing high pressure, are durable, and require minimal maintenance.

During the up and down process, our machines are capable of performing several actions including rapid descent, slow descent, bending at working speed, rapid return, and emergency stop of the ram.

Our machines are capable of continuously working under the rated load, with a hydraulic system that maintains stability and precision, and is completely leak-free.

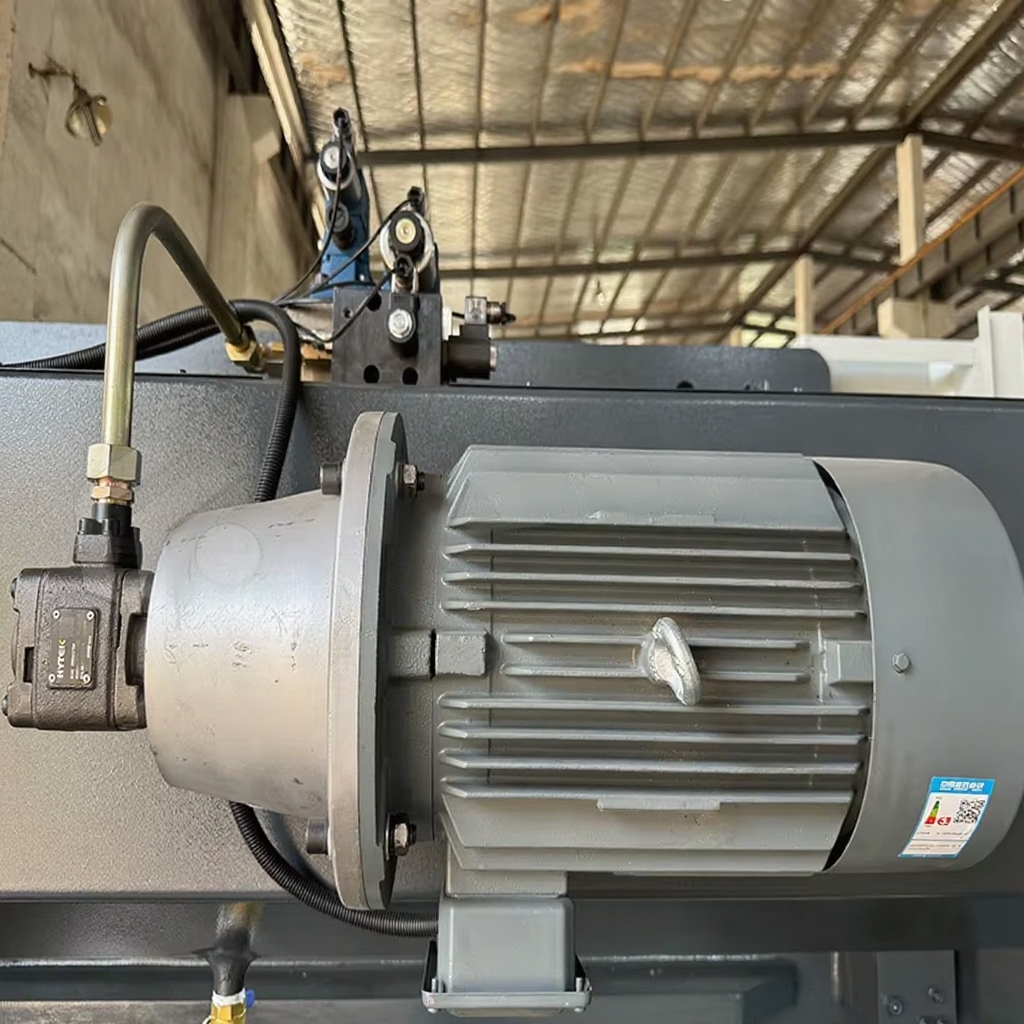

Siemens motors are a well-known and respected brand from Germany, offering high efficiency, energy-saving capabilities, large starting torque, excellent performance, low noise and vibration, and exceptional reliability.

These motors conform to IEC standards in terms of power level and installation size, making them easy to use and maintain.

We have the capability to customize the power and voltage of our machines to match the specific voltage requirements of our customers' local regions.

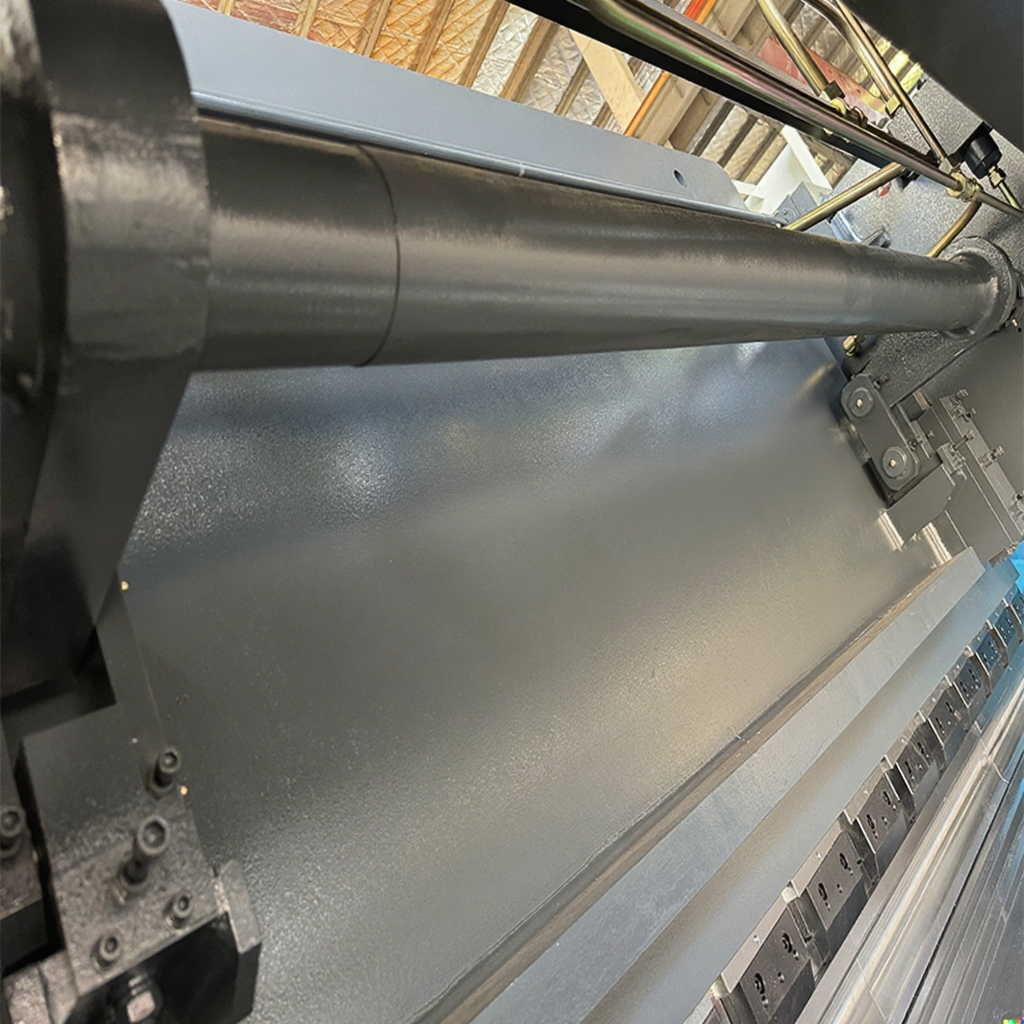

The torsion-sync principle governs the vertical movement of the ram.

The torsion-sync bar is the core mechanical synchronization device of the torsion axis bending machine.

It realizes mechanical synchronization by forcibly linking the sliders on both sides through the rigid torsion bar, ensuring the absolute synchronization and stability of the slider movement during the bending process, thereby ensuring the bending accuracy.

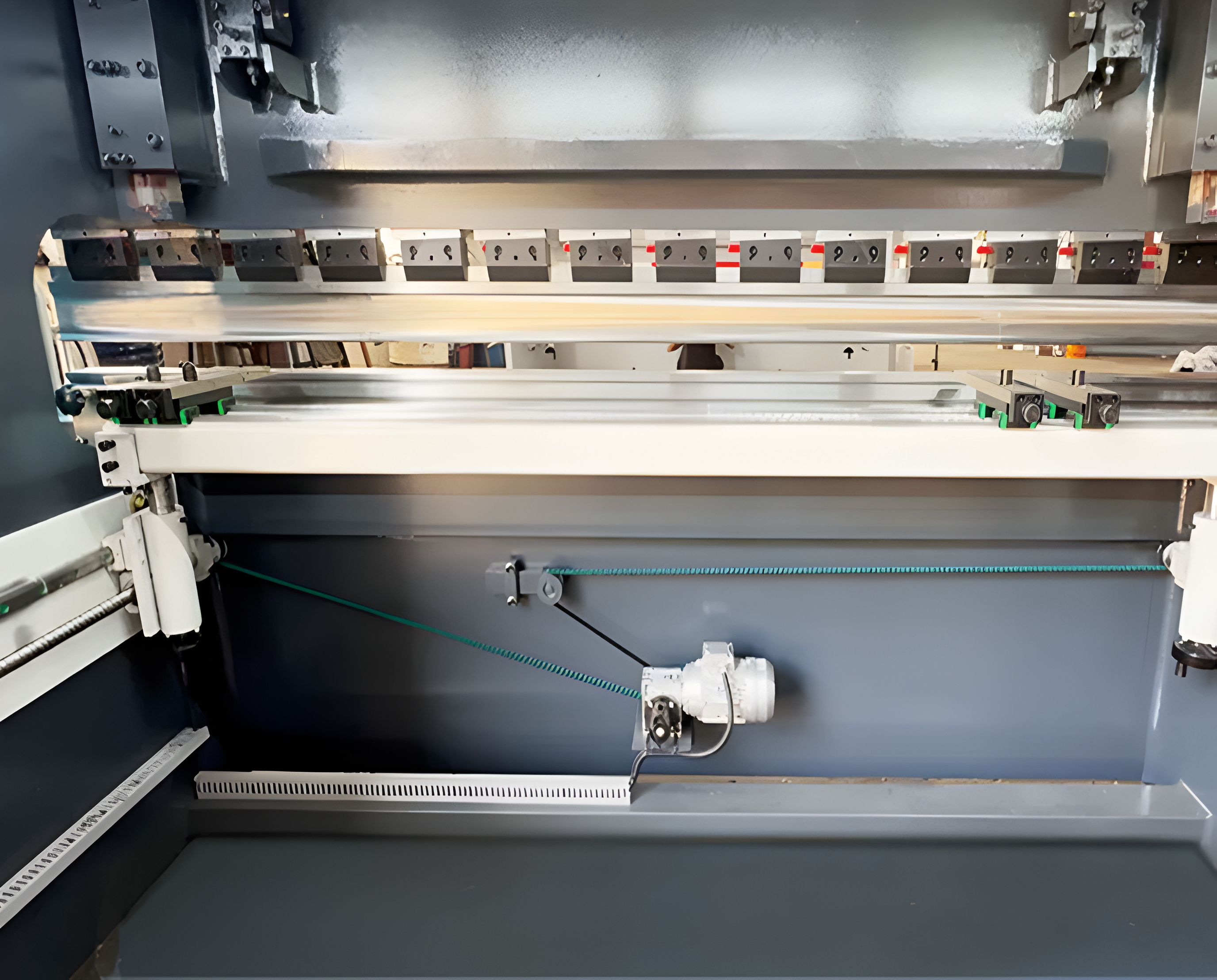

Our machines feature a rear stop assembly that is independently designed with high precision, equipped with a high-precision ball screw, adjustable stop finger, and manual lifting capabilities.

This design enables our machines to adapt to a variety of different punches.

Our machines utilize genuine Schneider parts imported from France, which provide stable and durable performance, ensuring a long service life.

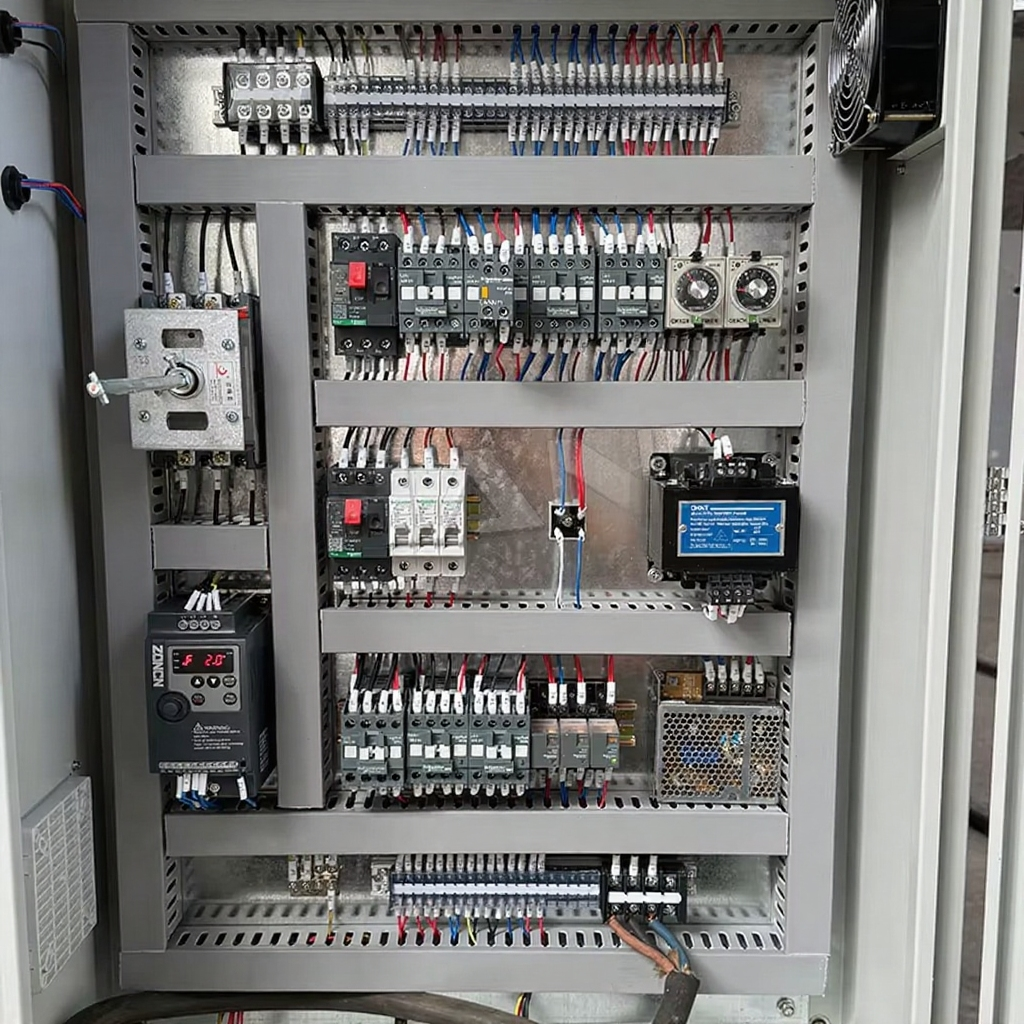

Our machines are equipped with Estun original adaptive electrical box assemblies, which offer a strong anti-interference ability and ensure stable electrical operation.

Advanced technology integrated into the system meets high operational demands, optimizing performance and productivity.The system is designed with simplicity in mind, facilitating straightforward maintenance

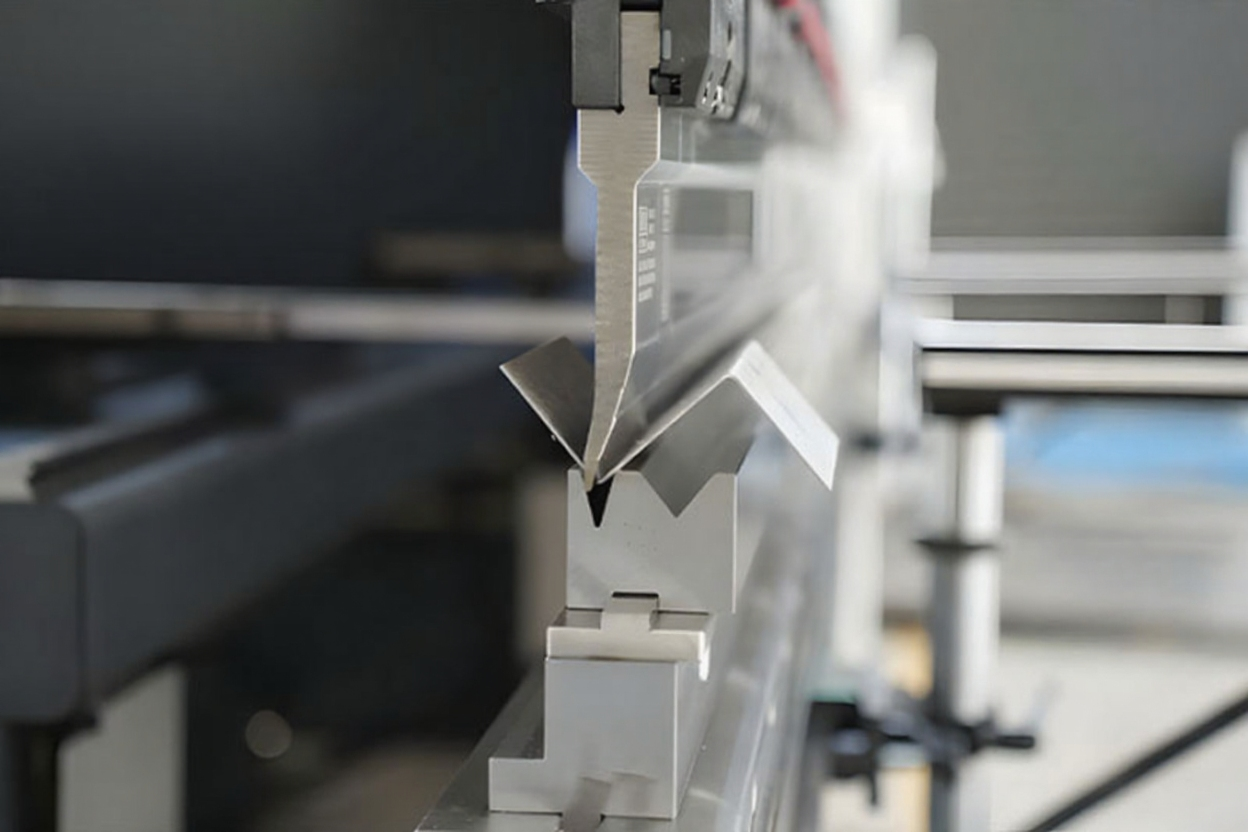

The right set of punch and die is necessary to achieve the desired bending shape.

We can offer suitable tooling options based on the specific bending requirements of our customers.

The design allows for quick replacement of different V-grooves, reducing downtime and improving production efficiency.

Made of high-strength materials , it has good wear and impact resistance and extends service life.

It can be customized according to customer needs to adapt to different production requirements .
