مكبس كهربائي

لا تتطلب مكبس الكهربائي أي زيت هيدروليكي ويتم تشغيله بواسطة أسطوانة كهربائية، مما يزيل التلوث الهيدروليكي وتأثير درجة حرارة الزيت على دقة الماكينة.

تستخدم الأسطوانة الكهربائية تقنية خاصة بشركتنا ومسمار لولبي كروي عالي الدقة ومتين لضمان الدقة العالية والعمر الطويل.

أثناء الثني، يتم تشغيل الأسطوانة بواسطة محرك مؤازر، والذي يستهلك طاقة قليلة أثناء حركات الهبوط والعودة. وهذا يجعل الماكينة موفرة للطاقة للغاية، حيث توفر أكثر من 50٪ مقارنة بمكابس الثني الهيدروليكية المماثلة.

تستخدم مكابس الثني الكهربائية على نطاق واسع في صناعات مثل أدوات المطبخ، والخزانات الكهربائية، والطاقة الجديدة، وتخزين الطاقة، والأجهزة.

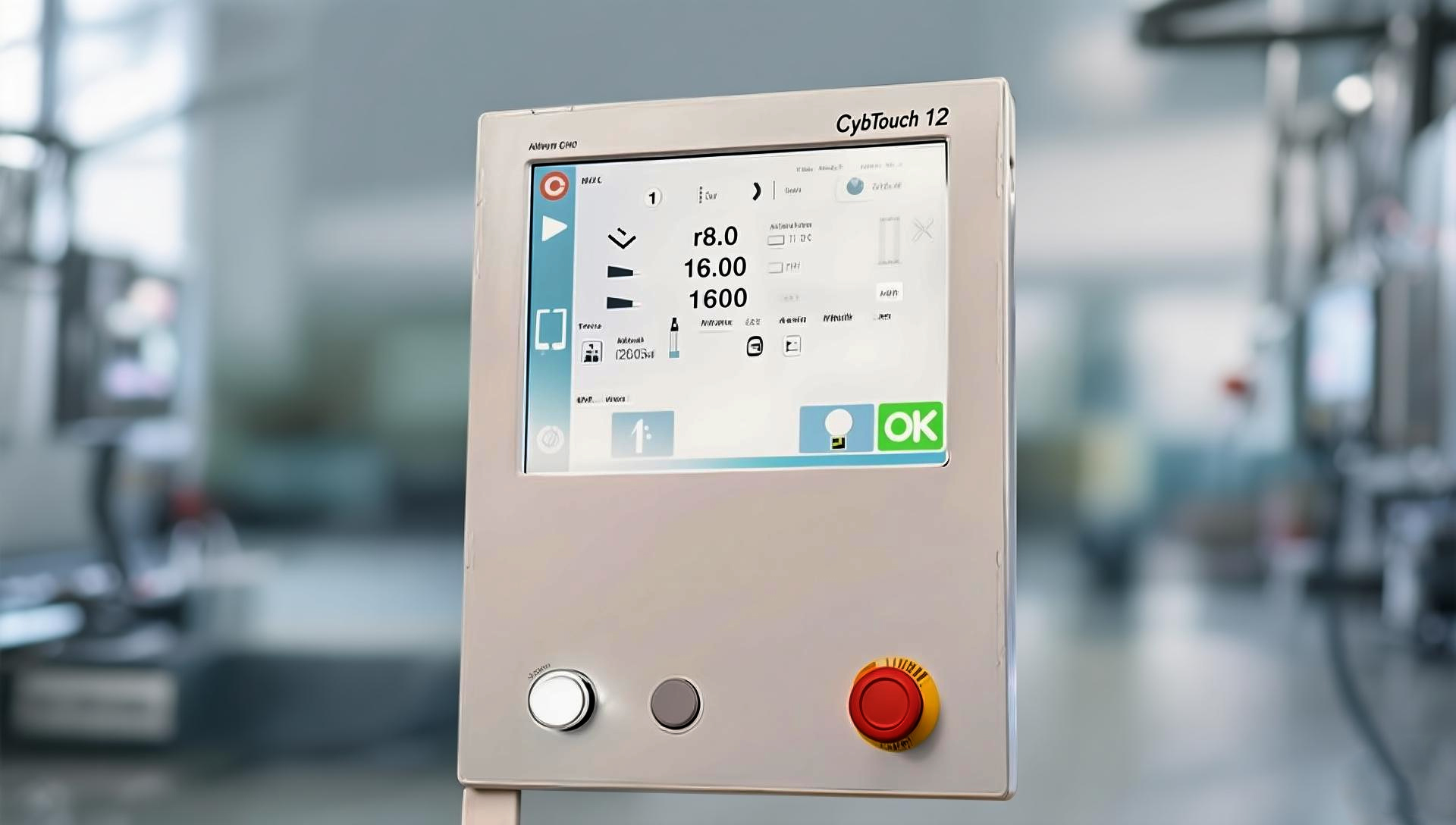

CNC Controller

Equipped with a Swiss CYBELEC C12 controller, intelligent angle compensation, and a material parameter database to improve bending accuracy and simplify operation.

High-end CNC systems are equipped with high-speed and high-precision control algorithms to ensure high bending accuracy and smooth motion.

Request A Quote

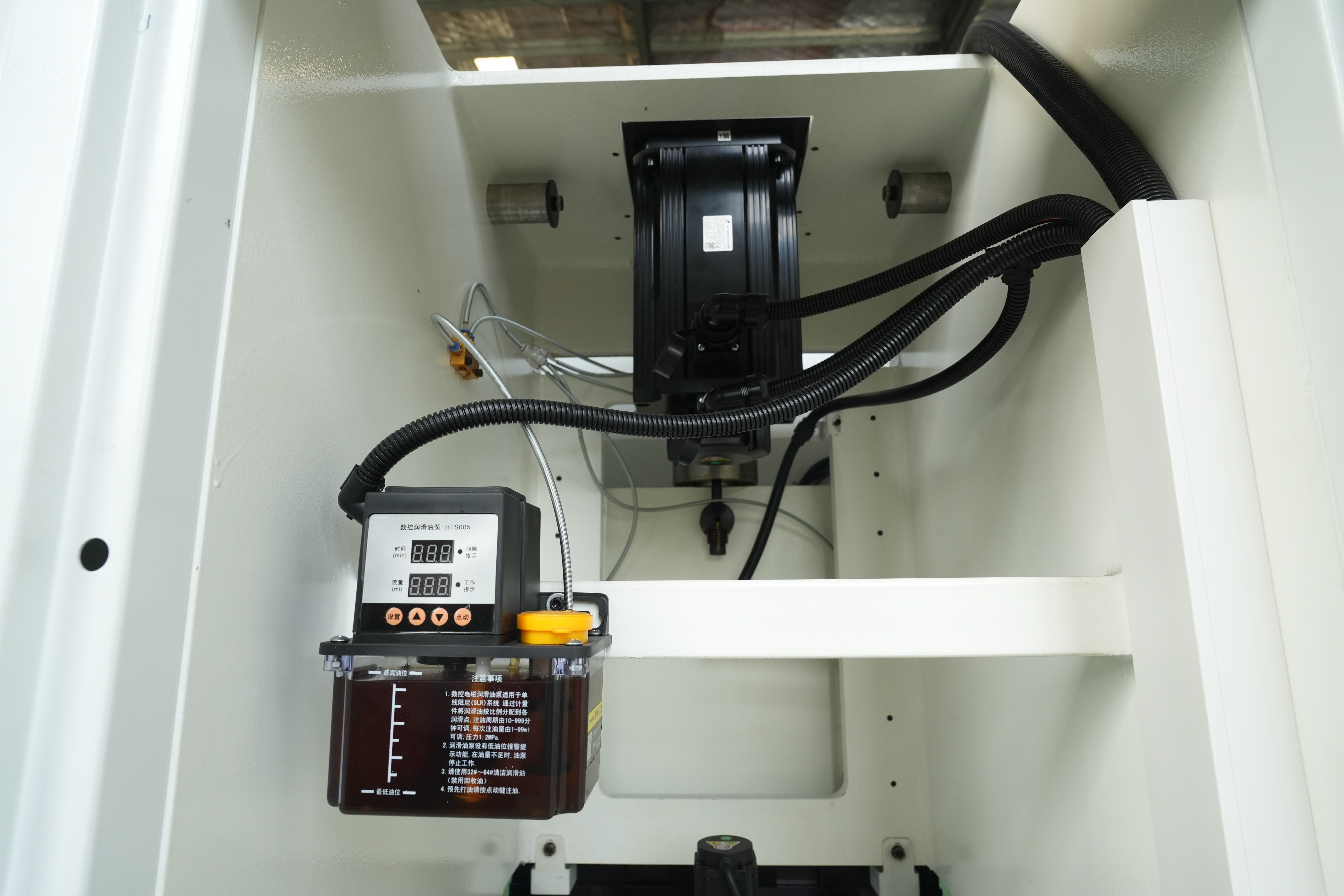

Electric Cylinder

The electric press brake does not require hydraulic oil and is driven by an electric cylinder, thus avoiding problems such as hydraulic contamination and the influence of oil temperature on machine tool accuracy.

It uses a heavy-loaded, high-precision ball screw with high precision and long service life.

Request A Quote

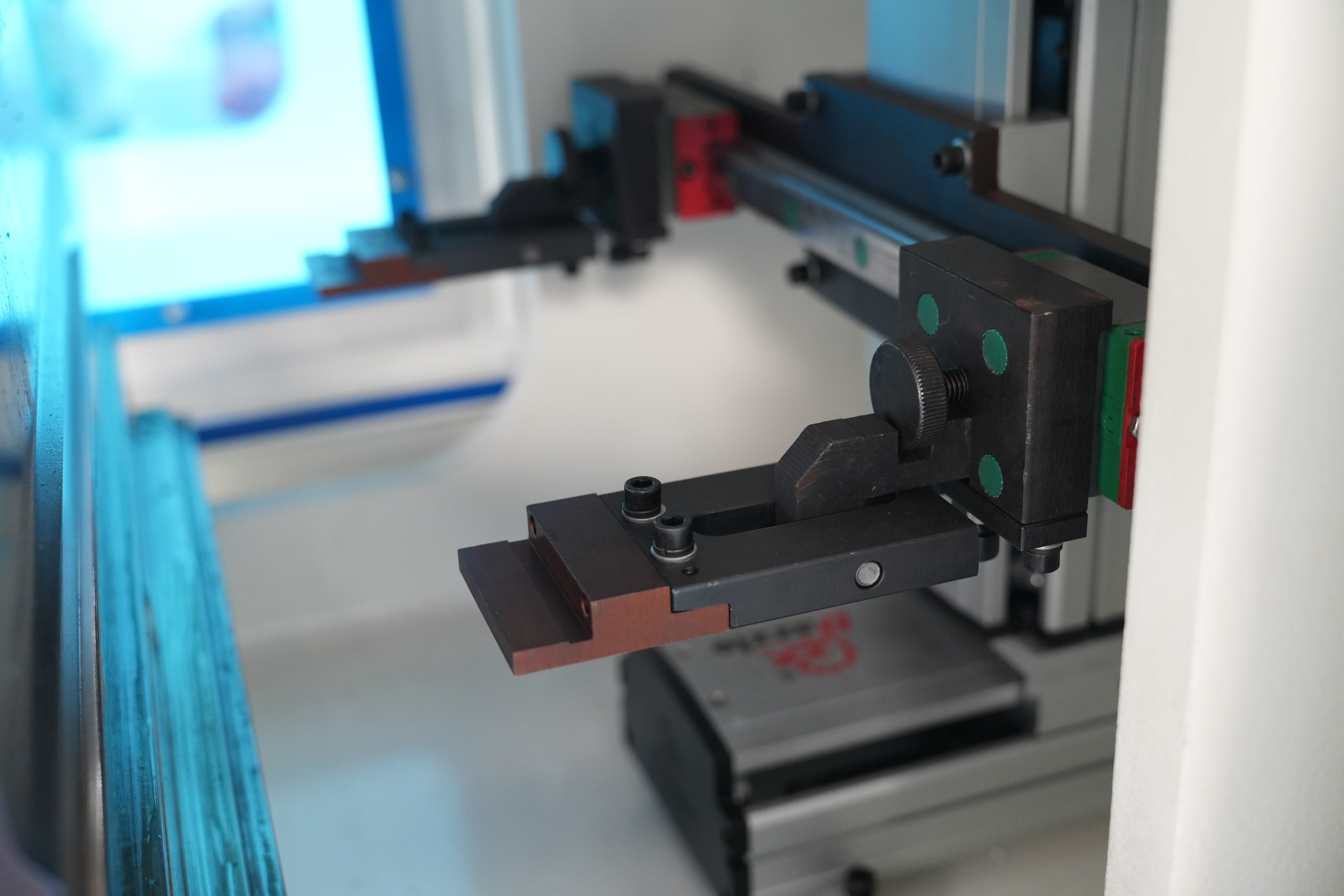

Finger Stop

The press brake finger stop is a positioning device installed at the rear of the bending machine.

It is used to accurately control the bending position of the plate. Its core function is to locate the edge of the plate through adjustable mechanical or CNC stops to ensure the dimensional consistency and processing accuracy of each bend. It is suitable for repeated positioning of multiple bending processes.

Request A Quote

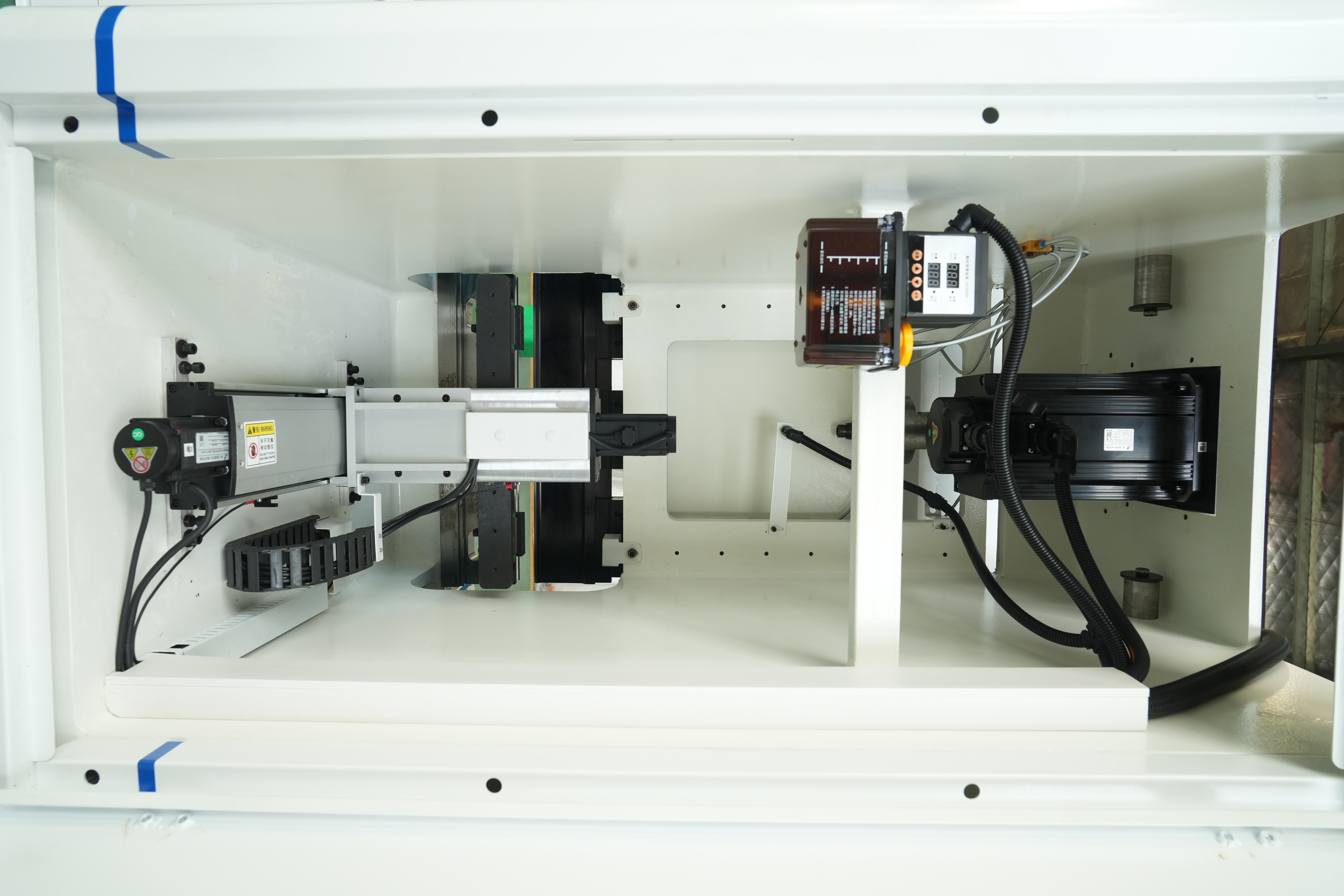

Backgauge

Servo motors drive ball screws on the X-axis, R-axis, and Z-axis manually for precise positioning in the rear material stop system.

Utilizes dual linear guide structure for high-precision positioning and fast speeds, improving positioning accuracy and speed of servo motor drive.

Flexible selection of multiple shaft levels, reliable expansion of system functions, while maintaining precise positioning, to meet various production needs.

Request A Quote

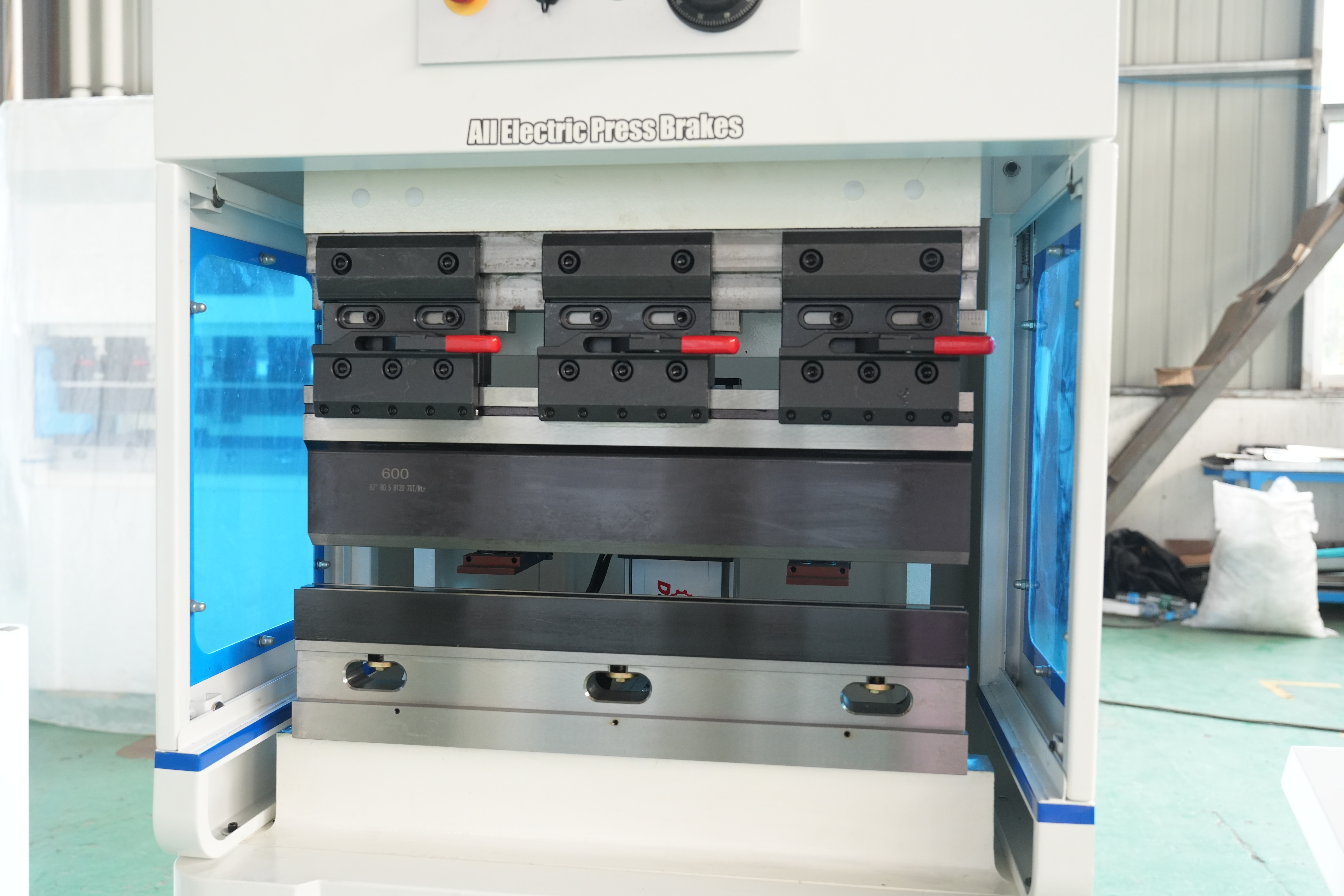

Fast Clamp

The fast clamp of the press brake is a clamping device used to quickly clamp and fix the bending mold.

Its function is to achieve the replacement and locking of the mold in seconds through a lever or hydraulic mechanism, greatly improving the mold change efficiency while ensuring the stability of the mold during the bending process.

Request A Quote

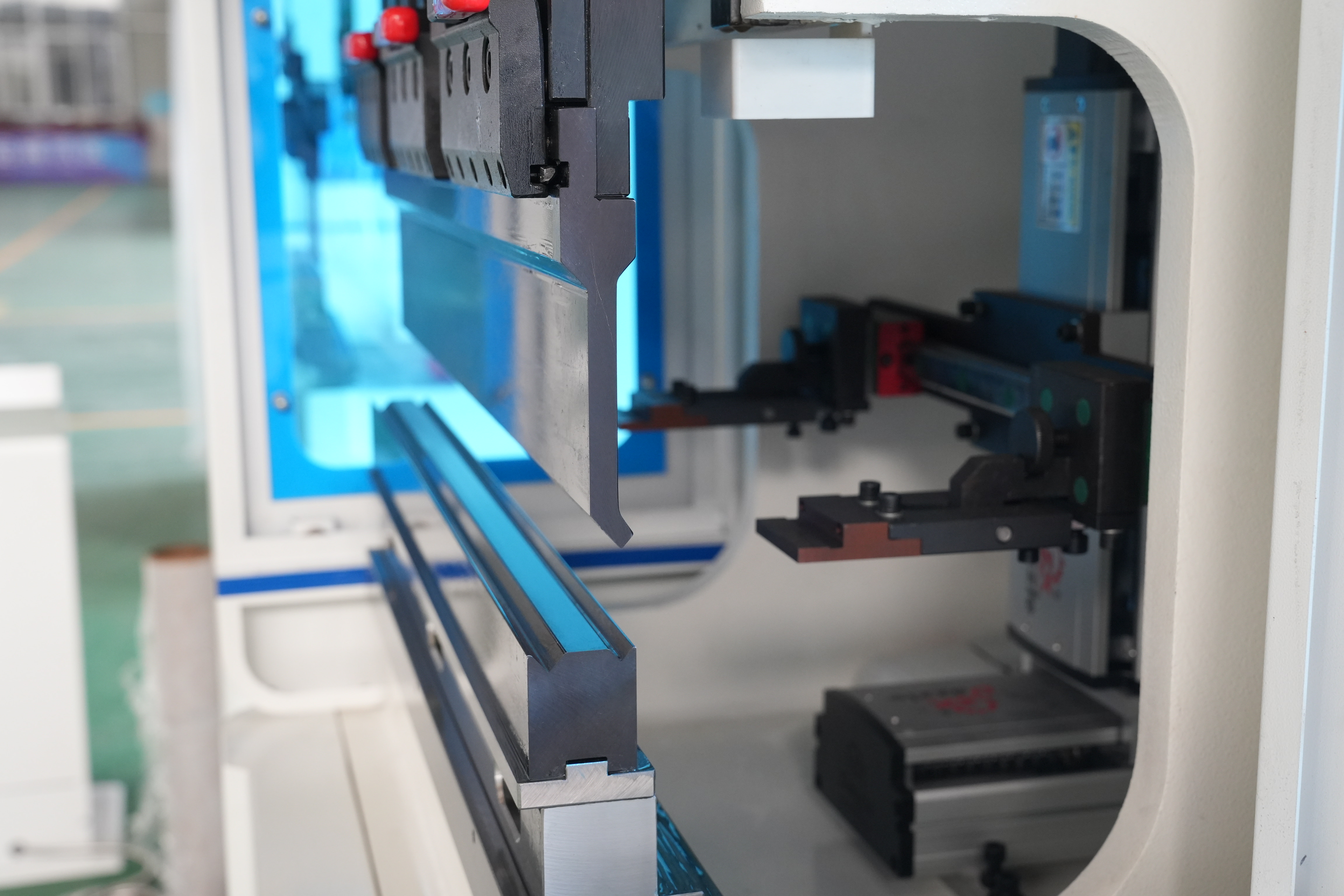

Molds & Dies

The upper die adopts a small gooseneck quick clamping die, and the lower die is designed with a double V core for easy loading and unloading and precise positioning. The upper die features a precision quick clamping function for easy die changing, increasing production efficiency.

The double V core design of the lower die enables flexible adjustments, reducing labor intensity and increasing production efficiency.
