آلة القطع بالليزر

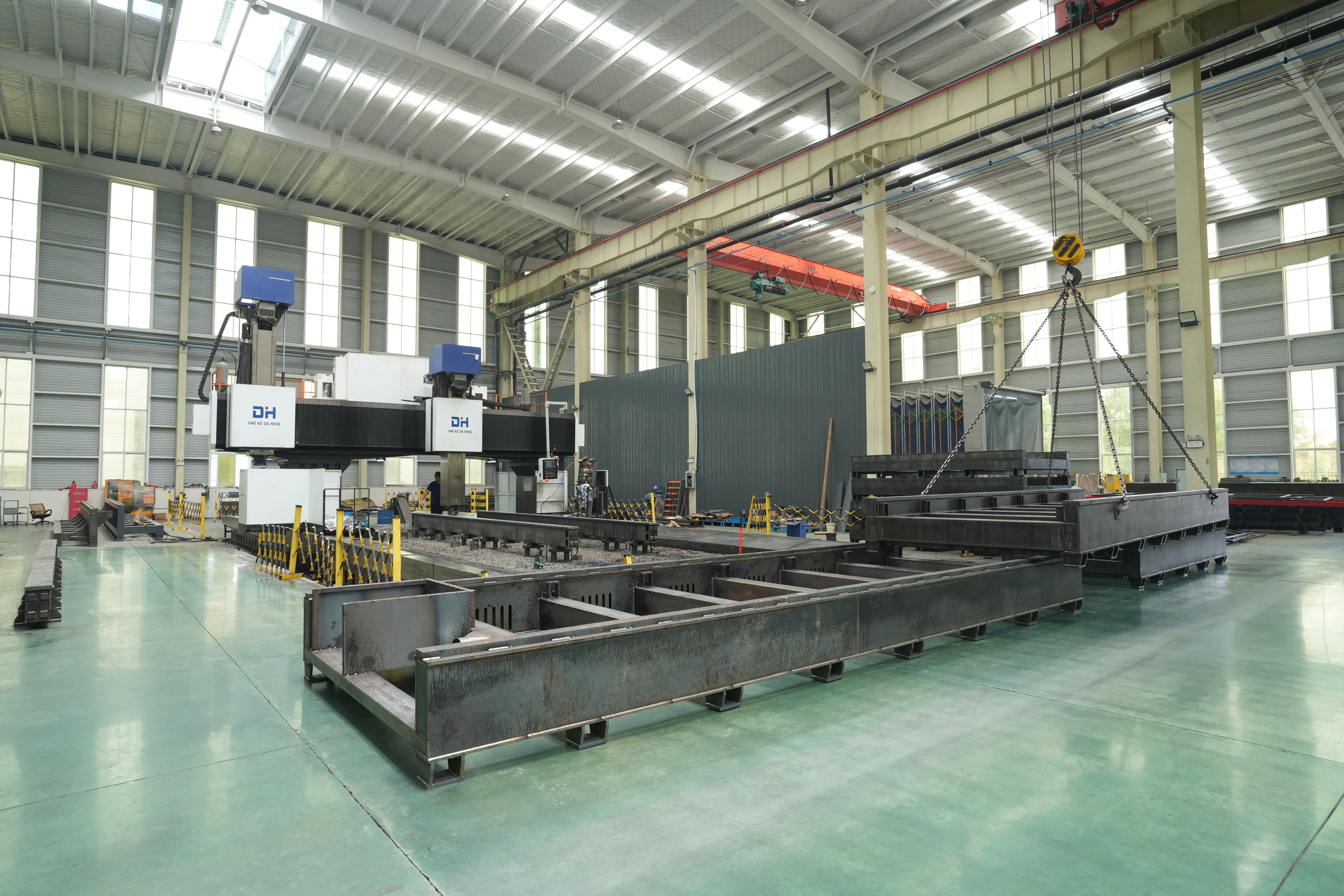

The laser cutting machine body is welded steel structure , these materials have high strength and high rigidity, the bed is annealed and aged to eliminate internal stresses and increase its resistance to deformation.

TIANTAN frames are machined with 5 axis CNC machining centers with single reference fixing. This keeps all axis parallel and the surfaces of the machine precise which provides great accuracy and longevity to the machine.

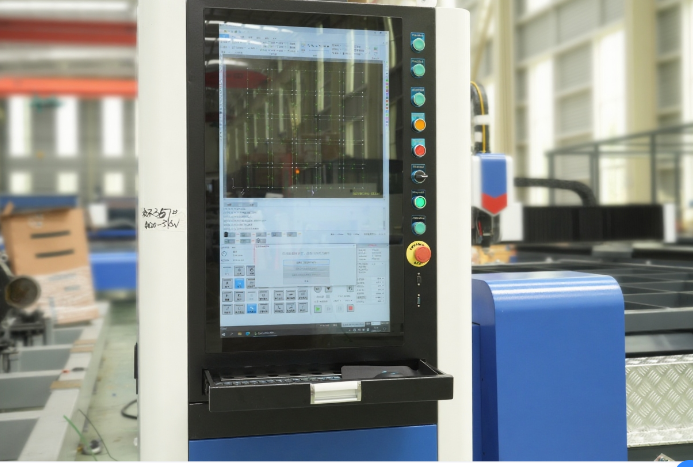

Cypcut cutting software is a fiber laser cutting software uniquely developed in China.

It is specifically designed to optimize the performance of fiber laser cutting machines.

Cypcut cutting software boasts easy installation and straight for ward debugging, coupled with outstanding performance. It also supports power-based speed adjustment, providing additional flexibility to its users.

Additionally, the software allows for separate import linear speed settings and boasts a robust cutting process database.Support the AI, DXF, PLT, Gerber, and ect. Graphics data format, accept raw Mater Cam, Type3, Wen Tai software into international standard G code.

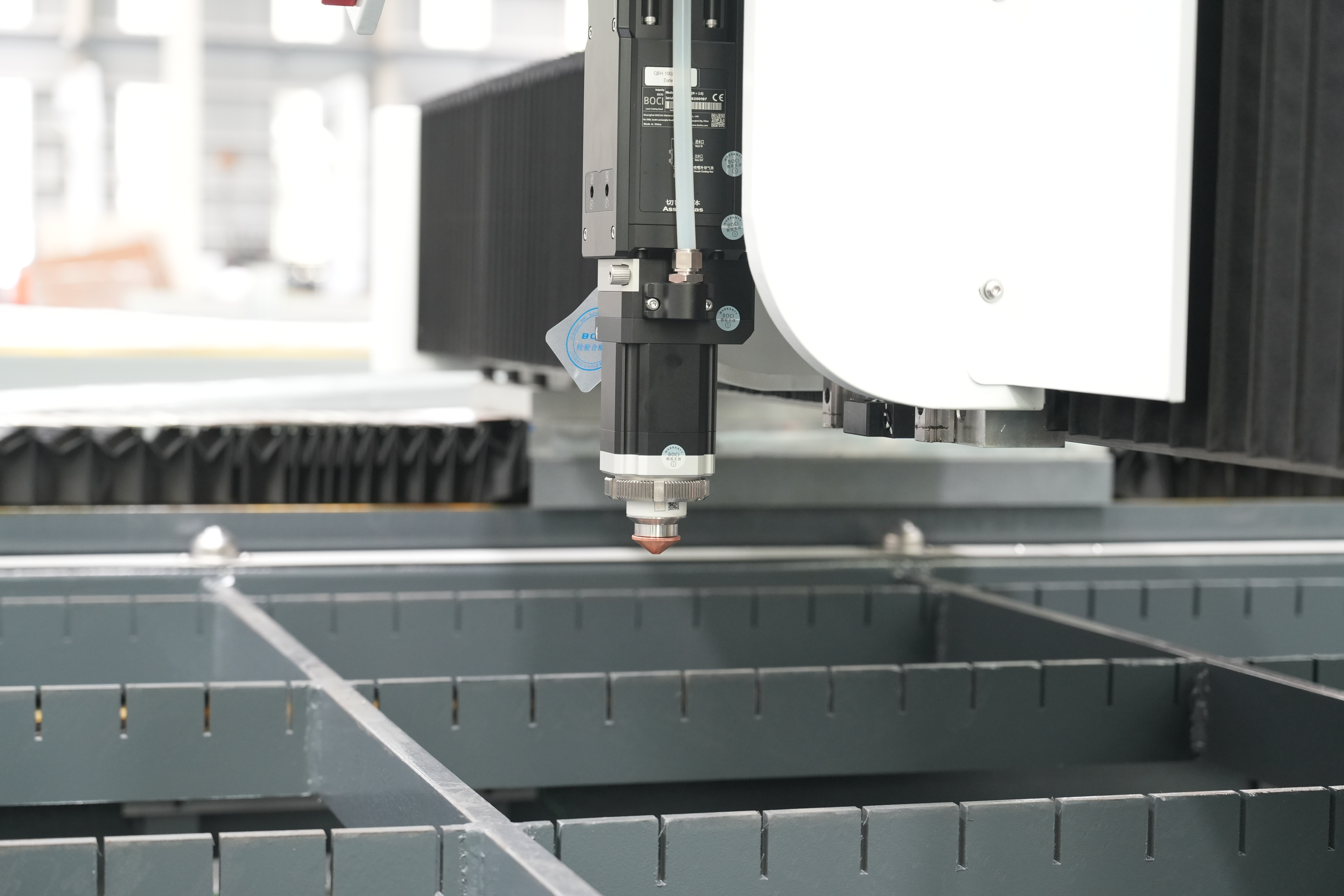

The cutting head adjusts the laser beam’s focus to maintain precision during complex cutting tasks. Its ability to handle various materials ensures top-quality results with minimal waste.

The cutting head's patented anti-collision protection structure, along with its waste cutting micro-connection, prevents plate warping and enables high-speed and stable cutting operations.

Its lightweight structure enables faster cutting speeds, reducing overall cycle time.

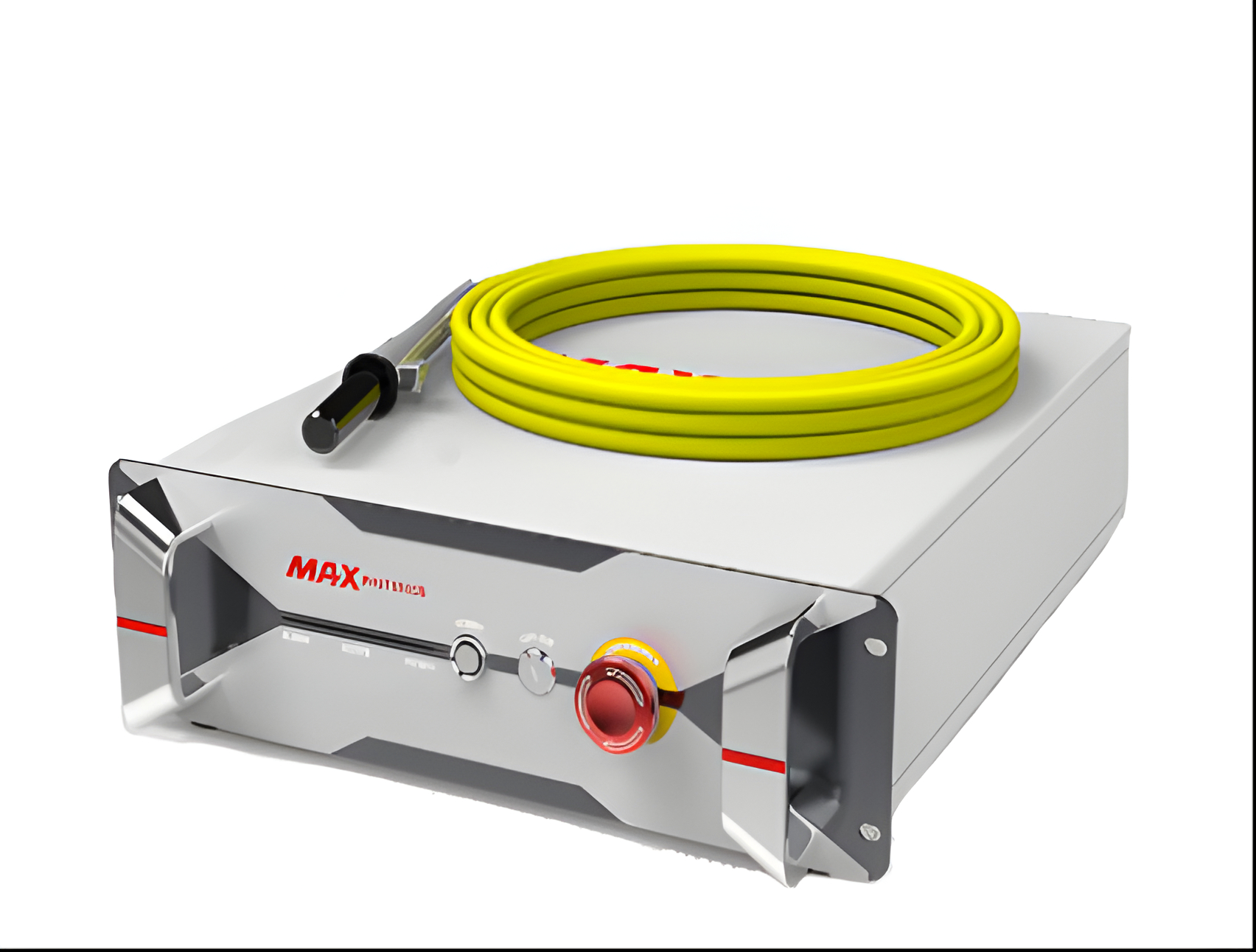

MAX laser source offers excellent beam quality with better focusing capabilities and smaller focal diameters.

MAX laser source has high electro-optical conversion efficiencies and use less energy than conventional lasers.

Fiber lasers have a relatively simple structure with fewer moving parts, resulting in lower maintenance requirements

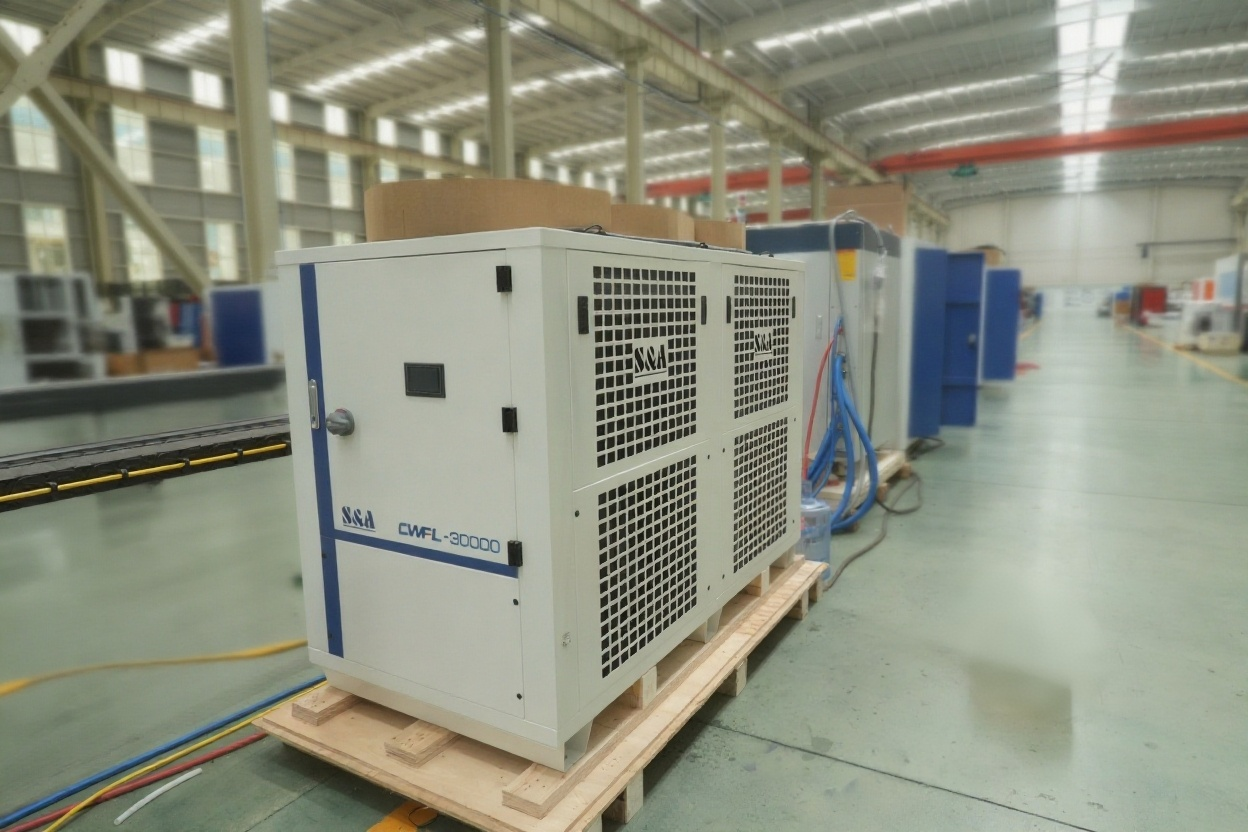

The water cooling system has high cooling efficiency , which effectively reduces the laser temperature.

It keeps the laser running at a constant temperature ensures that the output power and beam quality are affected.

Effective temperature control can extend the service life of the laser and its components.

With features such as over-temperature alarm, flow protection, water level protection, and other safety alarm notifications.

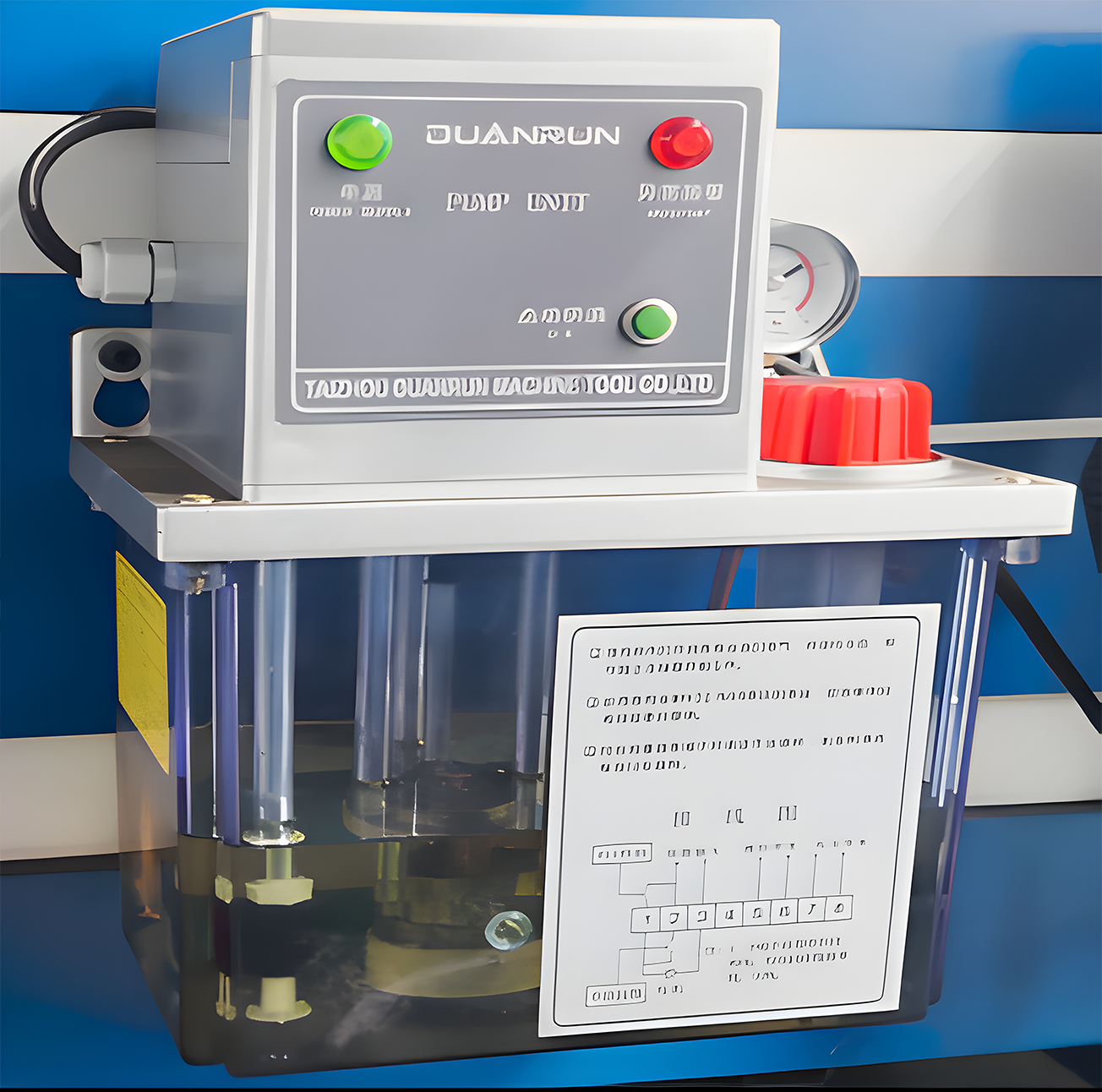

Most modern laser lubrication devices use intelligent control systems.

The timed automatic lubrication system initiates and dispenses lubricating oil based on the machine's operational schedule, making the process both expedient and convenient.

Laser lubrication devices enable precise lubrication of machine tool rails , gears and other components.

The laser lubrication device focuses on energy saving and environmental protection in its design and use .

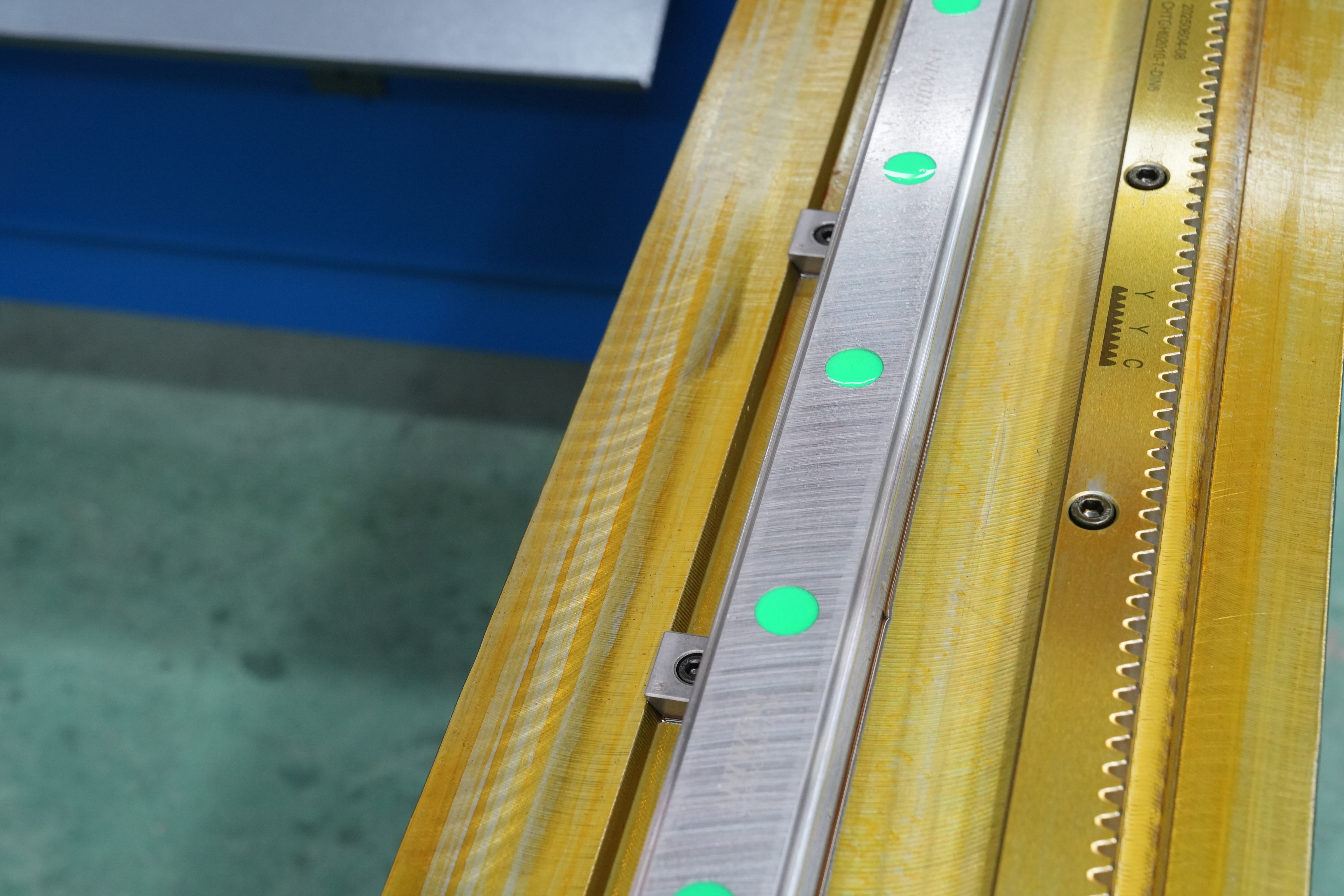

YYC Gear Rack is manufactured with high precision to provide stable and accurate linear motion.

YYC Gear Rack is able to withstand large loads, ensuring the stability and reliability of the motion system.

It has good wear resistance and long service life and is suitable for various environments and working conditions.
